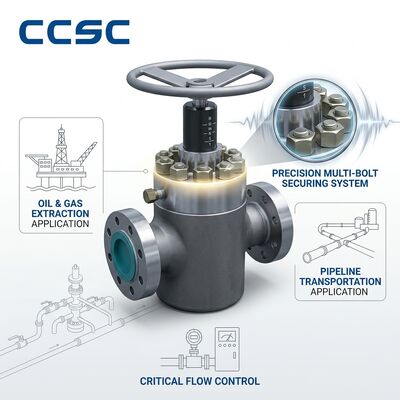

Full Bore High Pressure Gate Valve Engineered for Oil Gas Applications Operating at 75°F to 350°F Delivering Flow Control Solutions

Product Description:

The High Pressure Gate Valve is an essential component designed to regulate and control the flow of liquids and gases in various industrial applications. Built with precision and durability in mind, this Gate Valve is expertly crafted using forging as the processing type, ensuring superior strength, enhanced reliability, and long-lasting performance under demanding conditions. The forging process imparts excellent mechanical properties to the valve body, making it highly resistant to pressure fluctuations and mechanical stress, which is critical for high-pressure environments.

One of the standout features of this High Pressure Gate Valve is its vibrant red color, which not only adds to its aesthetic appeal but also serves as a visual indicator for easy identification and safety compliance in industrial settings. The red finish is achieved through a high-quality coating process that offers resistance against corrosion, wear, and environmental factors, thereby extending the valve's operational life even in harsh conditions.

Designed to operate efficiently within a working temperature range of 75°F to 350°F, this Gate Valve is versatile enough to handle a variety of fluids, including water, steam, oil, and other industrial liquids. The temperature tolerance ensures that the valve maintains its integrity and optimal performance without deformation or loss of sealing capabilities, making it suitable for applications in power plants, chemical processing, oil and gas industries, and water treatment facilities.

The valve is available in a size of 2 9/16", which makes it ideal for systems requiring precise flow control in moderately sized pipelines. This size strikes a balance between compactness and flow capacity, allowing for easy integration into existing piping systems without compromising on performance. The dimensions are carefully engineered to meet industry standards, ensuring compatibility and ease of installation.

Operation of this High Pressure Gate Valve can be conducted manually or through an electric actuator, offering flexibility to accommodate different user preferences and automation requirements. The manual operation option provides a straightforward and reliable means of controlling flow, suitable for applications where automation is not necessary or feasible. Meanwhile, the electric actuator allows for remote control and automation, enhancing operational efficiency, safety, and convenience in complex or hazardous environments.

As a traditional Gate Valve, this product functions by lifting a gate out of the path of the fluid, which provides a straight-through unobstructed flow when fully open. This design minimizes pressure drop and ensures a tight seal when closed, preventing leakage and maintaining system integrity. The gate mechanism is engineered for smooth operation, precise control, and durability, making it a dependable choice for on/off service and throttling in high-pressure systems.

In summary, the High Pressure Gate Valve stands out as a robust, reliable, and versatile valve solution tailored for high-pressure applications. Its forged construction guarantees exceptional strength, while the red coloring aids in safety and identification. The valve’s capability to operate within a wide temperature range of 75°F to 350°F, combined with its 2 9/16" size, makes it an ideal fit for various industrial pipelines. Furthermore, the option for manual or electric actuator operation ensures adaptability to different control system requirements. Whether used in oil and gas, chemical processing, or water management systems, this Gate Valve delivers consistent performance, durability, and ease of use, making it an indispensable component in maintaining efficient and safe fluid control.

Features:

• Product Name: High Pressure Gate Valve
• Testing Standard: API 598 for reliable performance
• Connection Type: Flanged for secure and easy installation
• Material Class: AA - HH ensuring durability and strength
• Seal Material: PTFE for excellent sealing and chemical resistance
• Temperature Range: -29°C to 425°C suitable for extreme conditions
• Designed as a robust Gate Valve for high pressure applications
• High Pressure Gate Valve suitable for demanding industrial use

Technical Parameters:

Applications:

The High Pressure Gate Valve, distinguished by its vibrant red color and superior forging processing, is an essential component in various industrial applications. Manufactured using high-quality materials ranging from Class AA to HH, this Gate Valve is engineered to withstand extreme conditions, making it highly reliable and durable. Its robust construction allows it to operate efficiently within a wide temperature range of -29°C to 425°C, ensuring optimal performance even in the most demanding environments.

This High Pressure Gate Valve is predominantly used in the Oil & Gas and Petrochemical industries, where control and regulation of high-pressure fluids are critical. In oil and gas pipelines, the Gate Valve provides a secure and leak-proof shut-off, which is vital for maintaining safety and operational integrity. Its ability to handle high pressures and temperatures makes it suitable for both upstream and downstream applications, including extraction, refining, and transportation processes.

In petrochemical plants, the Gate Valve plays a crucial role in managing the flow of various chemicals and gases. Its forged material construction ensures resistance to corrosion and wear, which is necessary for handling aggressive substances in these settings. The valve's precise control capabilities enable operators to regulate process flows accurately, contributing to the overall efficiency and safety of the plant operations.

Beyond these primary industries, the High Pressure Gate Valve is also utilized in other high-demand scenarios where reliable shut-off and flow control are required under harsh conditions. For instance, it is suitable for use in power generation facilities, water treatment plants, and industrial manufacturing processes that involve high-pressure steam or fluids.

Thanks to its exceptional durability, temperature tolerance, and material strength, the Gate Valve is an indispensable tool for engineers and technicians tasked with designing and maintaining high-pressure fluid systems. Its red color also aids in easy identification and safety compliance on-site, enhancing operational efficiency and safety.

Customization:

Our High Pressure Gate Valve product offers extensive customization services to meet your specific requirements. Manufactured with materials ranging from Class AA to HH, these valves ensure durability and reliability under demanding conditions.

The High Pressure Gate Valve features a full bore flow characteristic, providing unrestricted flow and minimizing pressure drop in your system. Each Gate Valve undergoes rigorous testing according to API 598 standards to guarantee superior performance and leak-tight sealing.

Designed to operate efficiently within a working temperature range of 75°F to 350°F, our High Pressure Gate Valve is ideal for various industrial applications requiring precise control and robust construction. Trust our customization services to deliver the perfect Gate Valve tailored to your operational needs.

Support and Services:

Our High Pressure Gate Valve is designed to provide reliable performance in demanding applications. To ensure optimal operation and longevity of the valve, we offer comprehensive technical support and services.

Our technical support team is available to assist with installation guidance, troubleshooting, maintenance procedures, and operational best practices. We provide detailed product documentation, including installation manuals, maintenance guides, and technical datasheets to help you understand the valve’s specifications and capabilities.

We also offer customized training sessions for your maintenance and operations staff to ensure proper handling and servicing of the High Pressure Gate Valve. In addition, our service centers are equipped to perform repairs, refurbishments, and performance testing to maintain the valve’s integrity and functionality.

For any issues beyond routine maintenance, our experts can assist with root cause analysis and recommend corrective actions to minimize downtime and extend the service life of your valve. We are committed to supporting your operational needs with timely and effective solutions.

FAQ:

Q: What materials are used to manufacture the High Pressure Gate Valve?

A: The High Pressure Gate Valve is typically made from high-grade stainless steel or carbon steel, ensuring durability and resistance to corrosion under high-pressure conditions.

Q: What pressure ratings does the High Pressure Gate Valve support?

A: This valve is designed to handle pressure ratings up to ANSI Class 1500 or higher, making it suitable for demanding industrial applications.

Q: Can the High Pressure Gate Valve be used for both liquids and gases?

A: Yes, the valve is versatile and can be used to control the flow of various liquids and gases in high-pressure pipelines.

Q: What sizes are available for the High Pressure Gate Valve?

A: The valve is available in a range of sizes, typically from 1 inch to 24 inches, to accommodate different pipeline requirements.

Q: How is the High Pressure Gate Valve operated?

A: The valve is usually operated manually via a handwheel, but it can also be equipped with electric or pneumatic actuators for automated control.
