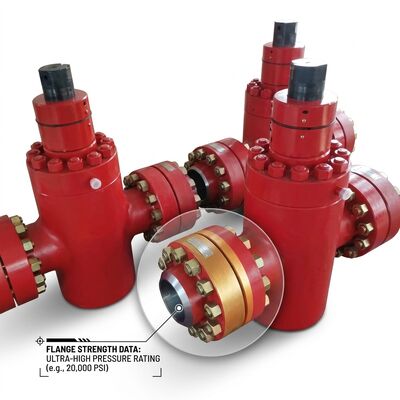

API 600 High Pressure Gate Valve Red Color Suitable for Working Temperature Range 75°F to 350°F Durable Industrial Valve

Product Description:

The High Pressure Gate Valve is a critical component designed for controlling the flow of liquids and gases in demanding industrial applications. Engineered with precision and built to withstand extreme conditions, this valve ensures reliable performance and longevity, making it an ideal choice for high-pressure systems. Manufactured in accordance with stringent industry standards, the High Pressure Gate Valve offers exceptional durability, safety, and operational efficiency.

One of the defining features of this High Pressure Gate Valve is its compliance with the API 598 test standard. API 598 is a rigorous testing protocol that verifies the valve’s ability to maintain tight shutoff and withstand pressure without leakage. This ensures that the valve delivers dependable sealing performance, which is crucial for maintaining system integrity in high-pressure environments. The valve undergoes extensive pressure testing, including shell and seat tests, to guarantee optimal functionality under demanding conditions.

The valve’s end connection is designed with flanged ends, facilitating easy installation and maintenance within pipeline systems. Flanged connections are widely preferred in industrial applications because they provide a robust and leak-proof joint, allowing for quick disassembly when required. The flanged design of this High Pressure Gate Valve ensures compatibility with a variety of piping configurations and standards, enhancing its versatility across different sectors such as oil and gas, petrochemical, power generation, and water treatment.

Built with a welded bonnet body design, the High Pressure Gate Valve offers enhanced strength and resistance to high pressure and temperature fluctuations. The welded bonnet construction minimizes the risk of leakage at the bonnet joint, a common weak point in valve designs. This feature significantly improves the valve’s structural integrity and reliability, ensuring a longer service life and reduced maintenance costs. The robust body design supports the valve’s capability to operate efficiently in the harshest conditions.

The High Pressure Gate Valve adheres to key industry standards, including API 600 and ASME B16.34. API 600 specifies requirements for steel gate valves used in pipeline systems, emphasizing dimensions, pressure ratings, and materials to ensure uniformity and quality. ASME B16.34 covers the design, manufacturing, and testing of valves, ensuring they meet stringent mechanical and pressure performance criteria. Compliance with these standards guarantees that the High Pressure Gate Valve meets or exceeds industry expectations for safety, reliability, and performance.

Constructed from premium stainless steel, this High Pressure Gate Valve offers excellent corrosion resistance and mechanical strength. Stainless steel material selection is critical for valves operating in aggressive environments where exposure to corrosive fluids, high temperatures, or abrasive substances is common. The stainless steel body not only enhances the valve’s durability but also contributes to maintaining the purity of the fluid being controlled, making it suitable for applications in food processing, pharmaceuticals, and chemical industries.

In summary, the High Pressure Gate Valve is a robust, reliable, and high-performance valve solution designed to meet the needs of demanding industrial processes. Its compliance with API 598 testing, flanged end connections, welded bonnet body design, adherence to API 600 and ASME B16.34 standards, and construction from high-quality stainless steel collectively ensure superior operational reliability and safety. Whether used in oil and gas pipelines, power plants, or chemical processing facilities, this High Pressure Gate Valve provides precise flow control, leak-tight sealing, and long-lasting service in high-pressure applications.

Features:

• Product Name: High Pressure Gate Valve
• Type: Gate Valve
• Working Temperature: 75°F - 350°F
• Body Design: Welded Bonnet
• Material: Stainless Steel
• Compliance with Standards: API 600, ASME B16.34
• Designed for high pressure applications
• Durable and reliable High Pressure Gate Valve suitable for various industrial uses

Technical Parameters:

Applications:

The High Pressure Gate Valve is an essential component in various industrial applications where reliable flow control is critical. Designed with a flanged end connection, this Gate Valve ensures a secure and leak-proof installation, making it ideal for high-pressure systems. The robust construction and Class 1500 pressure rating enable the High Pressure Gate Valve to perform efficiently in demanding environments, handling pressures that require superior durability and strength.

One of the primary application occasions for this Gate Valve is in the oil and gas industry, where controlling the flow of crude oil, natural gas, and refined products is vital. The valve’s ability to operate within a wide temperature range—from -29°C to 425°C (approximately 75°F to 350°F)—makes it suitable for pipelines subjected to extreme temperature variations. Whether in offshore platforms, refineries, or pipeline transportation networks, the High Pressure Gate Valve provides reliable shut-off and flow regulation capabilities.

Another common scenario for the utilization of this Gate Valve is in power generation facilities. Steam lines and cooling water circuits often require valves that can withstand high pressure and temperature conditions. The PTFE seal material used in this Gate Valve offers excellent chemical resistance and sealing performance, ensuring minimal leakage and long service life even under harsh operating conditions. This makes it an excellent choice for both fossil fuel and nuclear power plants.

Furthermore, chemical processing plants benefit from the High Pressure Gate Valve’s versatility. The valve’s flanged end connection facilitates easy maintenance and replacement, which is crucial in industries where downtime can lead to significant losses. The Gate Valve can handle corrosive and abrasive fluids, thanks to its durable sealing and material construction, making it suitable for a variety of chemical media.

In summary, the High Pressure Gate Valve is widely applied in industries such as oil and gas, power generation, and chemical processing where high pressure, temperature, and reliable sealing are required. Its flanged end connection, PTFE seal material, and ability to operate between -29°C and 425°C make it a dependable solution for controlling flow in critical pipelines and systems.

Customization:

Our High Pressure Gate Valve offers customizable options to meet your specific requirements. The sealing material is made of durable PTFE, ensuring excellent resistance and reliable performance under various conditions. You can choose between manual operation or gear operated mechanisms for ease of use and precise control.

The Gate Valve is available in a striking red color, enhancing visibility and safety in your system. Designed to withstand a pressure service level (PSL) of 3, this High Pressure Gate Valve is suitable for demanding applications.

With a working temperature range from 75°F to 350°F, this valve maintains optimal functionality across a broad spectrum of temperatures, making it ideal for diverse industrial environments.

Support and Services:

Our High Pressure Gate Valve is designed to provide reliable and efficient performance in demanding industrial applications. To ensure optimal operation and longevity of the valve, we offer comprehensive technical support and services.

Technical Support: Our team of experienced engineers is available to assist with installation guidance, troubleshooting, and maintenance procedures. We provide detailed technical documentation, including operation manuals, maintenance guides, and material specifications to support your needs.

Installation Services: Proper installation is critical for the performance of high pressure gate valves. We offer on-site support and supervision during installation to ensure compliance with industry standards and to optimize valve functionality.

Maintenance and Repair: Regular maintenance is essential to maintain valve integrity and prevent unexpected failures. We provide inspection, testing, and repair services, including seat replacement, stem packing adjustment, and body refurbishment, performed by qualified technicians.

Customization and Upgrades: We understand that specific applications may require tailored solutions. Our team can assist with custom valve design modifications and upgrade options to meet unique operational requirements.

Spare Parts Supply: To minimize downtime, we maintain an inventory of critical spare parts compatible with our High Pressure Gate Valves. We provide prompt shipment of genuine components to support your maintenance schedule.

Training: We offer training programs for your personnel on valve operation, maintenance best practices, and safety procedures to enhance in-house capabilities and ensure safe handling.

By choosing our High Pressure Gate Valve, you benefit from not only a high-quality product but also dedicated technical support and comprehensive services designed to maximize your operational efficiency and valve lifespan.

FAQ:

Q1: What materials are used to manufacture the High Pressure Gate Valve?

A1: The High Pressure Gate Valve is typically made from stainless steel, carbon steel, or alloy steel to ensure durability and resistance to high pressure and corrosion.

Q2: What pressure ratings does the High Pressure Gate Valve support?

A2: This valve is designed to handle high pressure applications, commonly rated up to ANSI Class 1500, 2500, or higher, depending on the specific model and material.

Q3: What sizes are available for the High Pressure Gate Valve?

A3: The valve is available in various sizes, ranging from 1/2 inch to 24 inches, to accommodate different pipeline requirements.

Q4: Is the High Pressure Gate Valve suitable for both liquid and gas applications?

A4: Yes, the valve is designed to effectively control the flow of both liquids and gases in high pressure environments.

Q5: How is the High Pressure Gate Valve operated?

A5: The valve is typically operated manually using a handwheel, but it can also be equipped with electric or pneumatic actuators for automated control.
